We worked with

  • Builder: Bryan & Petersen Quality Builders
This project was located in
Bunningyong
This project took place in
2020

We used these products

  • Bolted Roof Trusses
  • GL15 Tasbeam
  • Curves
Download Project PDF
Back to all projects
Project

Hovey Curve Trusses

Four feature trusses with wonderful curvatures and finishes

Truss Specifications
Glulam: GL18 Vic Ash Hardwood H3
Top Chord: 240x65mm GL18
Bottom Chord: 240x65mm GL18
Posts & Webs: 150x65mm GL18
No of trusses: 4 trusses
Coating: Intergrain Ultraclear Interior

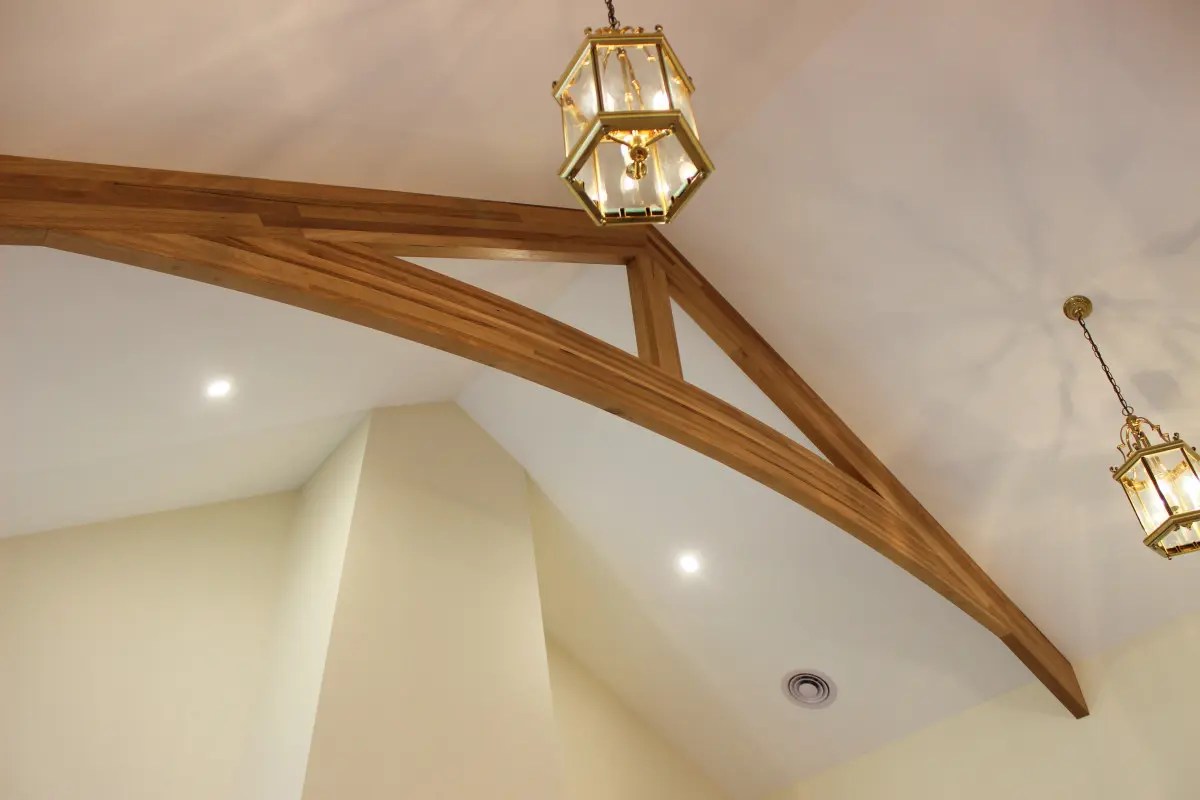

A set of feature trusses have been installed for a residential home built by Bryan & Petersen Quality Builders. Located inside the central living areas, the feature trusses display its coated hardwood marvellously and with quality curvatures and timber finishes.

Vicbeam was approached to manufacture GL18 Vic Ash Hardwood glulam for this main residence, built on an open lot with loads of bushland and gardens. The glulam was assembled in factory and custom fabricated into feature trusses, where the timber texture and curving bottom chord is an eye-catching feature inside the home.

To ensure full appearance of timber, each truss has connections covered by timber plugs; often used to hide steel screws from sight. In this case, the plugs were used to the bottom chord of the truss and sanded to flush, making the trusses appear seamlessly made of hardwood with no steel materials.

Two layers of coating was applied to enrich the natural textures and markings of Vic Ash, making each truss contrast well from the white ceilings and other timber elements in the house.

A project that set a great example of including curve timber in feature trusses. They were custom fabricated and installed with timber plugs that seamlessly adds to the appearance of timber. Additionally, the coating makes these feature trusses look stunning from different angles of the home and will become a talking point in any social setting.
