We worked with

  • Architect: Kennon Studio
  • Builder: The Melbourne Builder
  • Engineer: Meyer Consulting
This project was located in
Prahran
This project took place in
2021

We used these products

  • Tasbeam 15 H3
  • Coating
Download Project PDF
Back to all projects
Project

Packington Residence

A complete glulam portal frame to feature for this Prahran resident.

Timber Specifications
Glulam: GL18 Vic Ash Hardwood H3
Rafters: 400x240mm GL18
Columns: 400x240mm GL18
Coating: Cutek Extreme

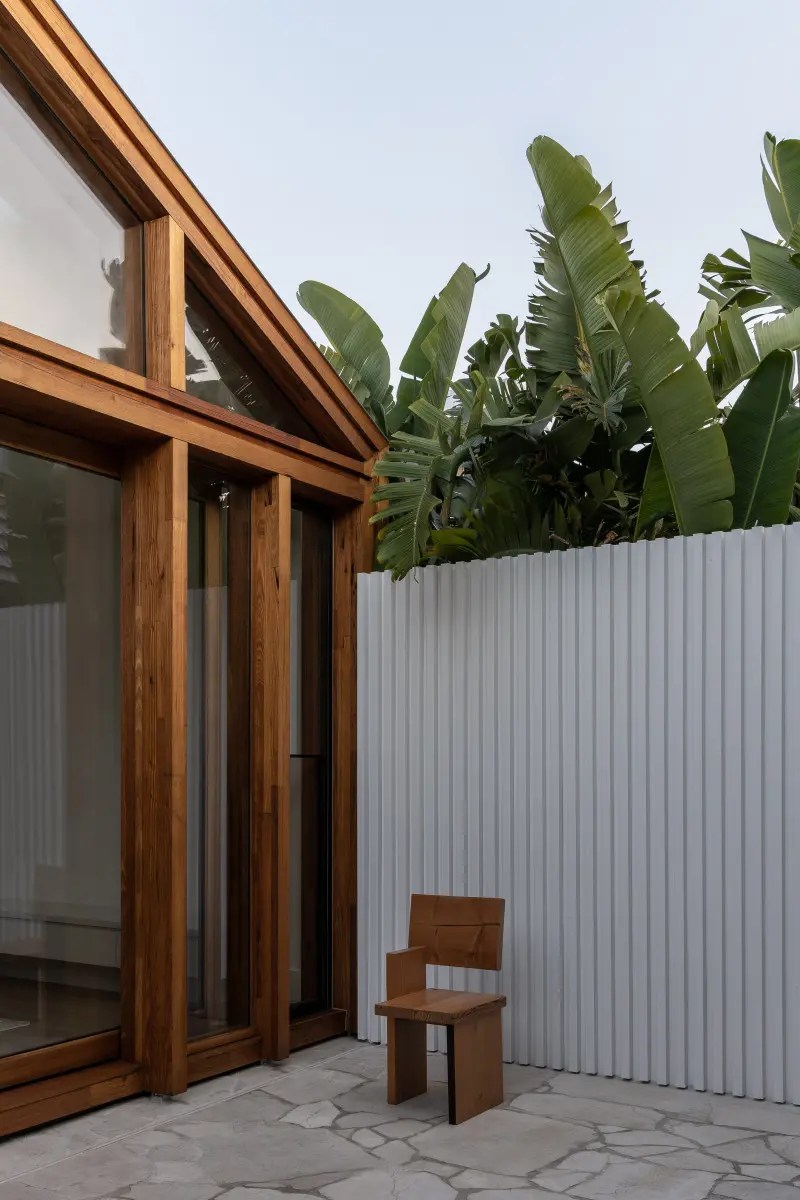

A newly renovated residential home with an exposed glulam portal frame has been assembled in Melbourne, Prahran. Vicbeam was approached by Kennon Studio to design and manufacture a bespoke Glulam portal with sliding doors made of GL18 Vic Ash hardwood H3.

Designed by Kennon Studio and built by the Melbourne Builder, this renovation sees a small terrace home rejuvenated with quality timber finishes. All glulam members were prefabricated, H3 treated then finished with Cutek Extreme.

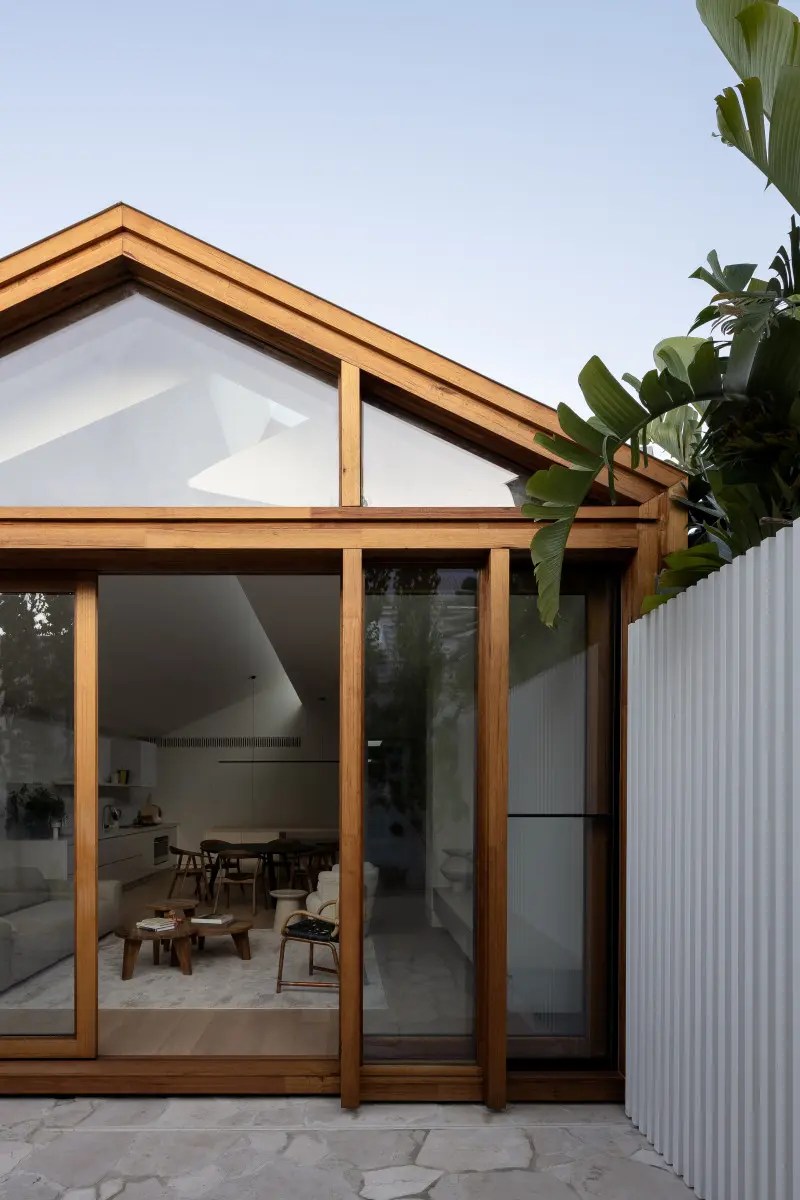

In collaboration with Peter Kennon, we were able to incorporate the sliding doors and windows into the portal frame which required a redesign. The original intent called for a separate timber window and sliding door system to sit in front of the timber portal.  This simplified the build and provided a bespoke finish.

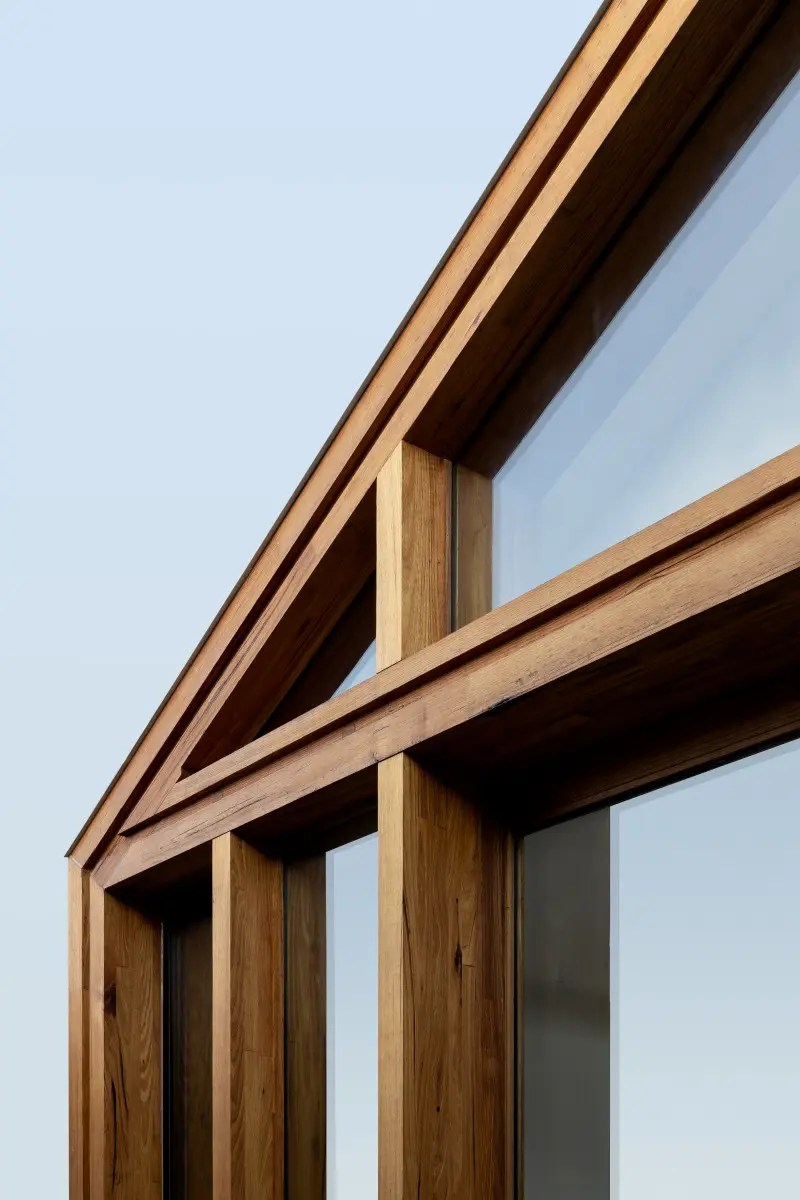

The glulam beams were installed with concealed steel plates and fixings, with glazed windows rebated into timber portal members. To avoid standing water, cuts to the corners and sloping faces were made to horizontal beams allowing water to run off the outside sills of the portal frame.

Round timber plugs were provided to cover counterbored holes drilled in-between the middle grooves of the beams, which were uniquely routed to each beam and displayed on the external side of portal members. Additionally, two custom glulam doors were also fabricated in-house, coated, and installed on-site to complete a distinctive portal frame with sliding doors.

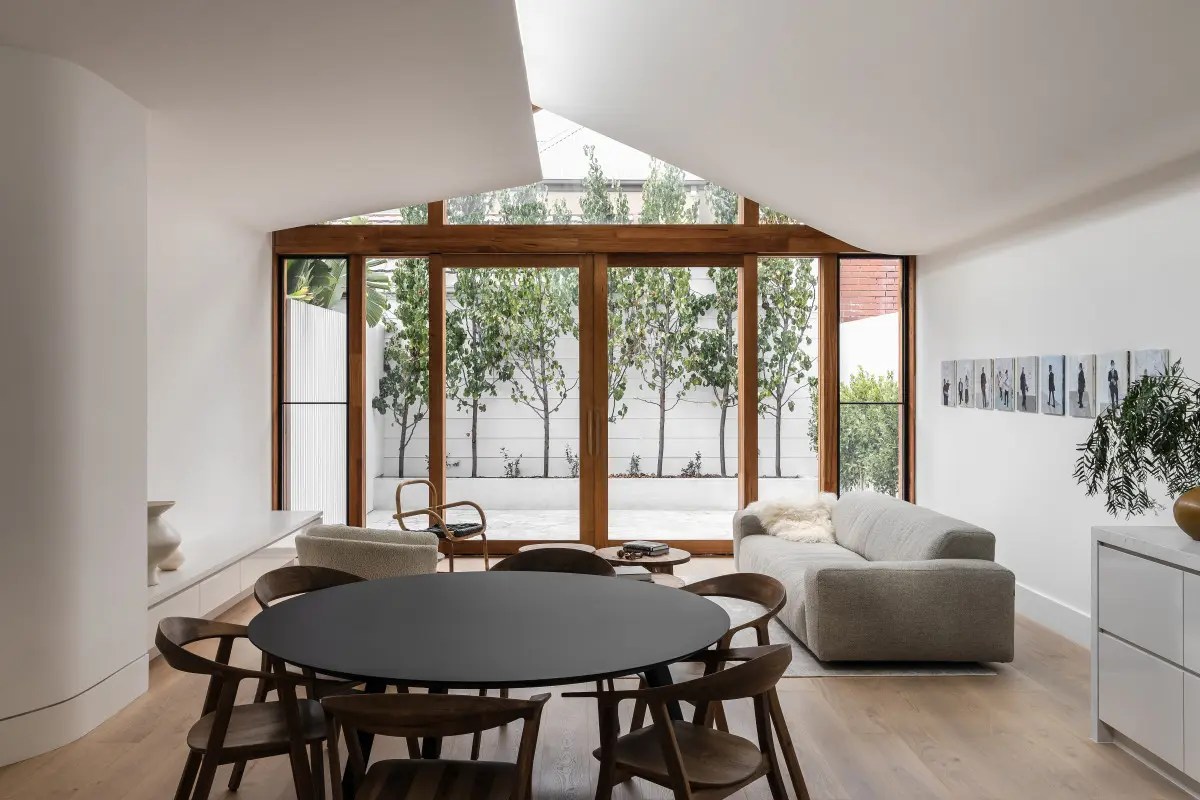

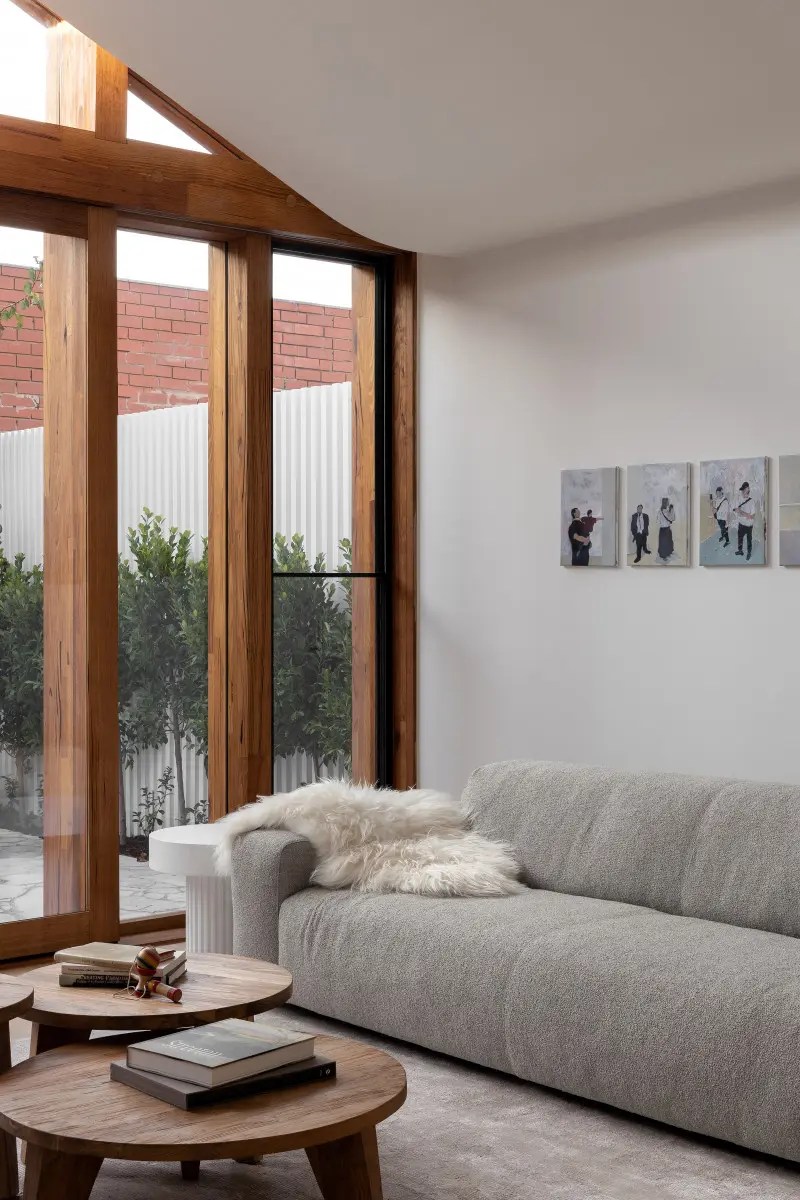

A glulam portal that contrasts from the open living area, capturing viewers’ attention with its coated timber textures and quality finishes.
